Parameter
HY-W-SJS-3S / 3S(Y)
Ultrahigh Speed Computerized Chain Stitch Multi-needle Quilting Machine
Ultrahigh Speed Computerized Chain Stitch Multi-needle Quilting Machine
CE-Certification | widening | high efficiency
HY-W-SJS-3S
Ultrahigh Speed Computerized Chain Stitch Multi-needle Quilting Machine
[ Ultrahigh Speed | CE-Certification | widening | high efficiency ]
NO.1
Purpose: It is widely used for quilting high-quality mattresses, quilt covers, and household ornaments. Different patterns are available.
1】Servo system is used in X-Y-Z axis, that can improve 30% production for independent patterns.
2】Raising supporting board makes it more convenient to operate and maintain.
3】Y axis reduction gearbox makes it work more fluently with low-noise.
4】New type retainer frame structure,with the advantages of low noise.
5】Press plate can be adjusted according to material thickness.
6】More tight thread stitches make the quilting pattern with stronger third dimension.
7】Needle bar and press plate are controlled by a double-swing device without cam avoiding lubrication and dirtying of material.
8】Multi-span and independent patterns ( 360°、180° patterns are available ).
9】Top thread and bottom thread broken detection,automatic needle-lifting, quilting speed set in software.
10】CE certificate.
11】Outstanding features such as high rigidity,high running speed,low vibration and noise.
12】The new generation of controlling system guarantees quilting accuracy. Parameters or patterns do not require excessive modification during quilting process.
13】CAD drawing methods enable precise, convenient, and efficient graphics creation.
14】Strong functions of pattern-combining and multi-span quilting to enable you to quilt different patterns in each row in the mattresses of different sizes.
15】Status monitoring provides a clear view of the machine's operational condition.
NO.2
| Parameter(单位/Unit mm) | HY-W-SJS-3S | HY-W-SJS-3S |
| Host electrical box | Independent electric box | Integrated electric box |
| Dimension(LWH) | 4750×1500×2100 | 4800×1500×2100 |
| Quilting width | 2480 | 2480 |
| Space between needle rows | 50.8,76.2,127 [5"] 76.2,76.2,152.4 [ 6" ] | 50.8,76.2,127 [5"] 76.2,76.2,152.4 [ 6" ] |
| Space between needles | 25.4 | 25.4 |
| X-axis movement displacement | 350 | 350 |
| Thickness of quilting | ≤ 80 | ≤ 80 |
| Stitch length | 3~8 | 3~8 |
| Speed of operation | 60~300[m /hour] | 60~300[m /hour] |
| Model of needle | 24/180，23/160 22/140，21/130 | 24/180，23/160 22/140，21/130 |
| Quilting speed | 600~1400 [rpm] | 600~1400 [rpm] |
| Total power required | 9 KW | 9 KW |
| Voltage | 380V/50HZ 220V/60HZ | 380V/50HZ 220V/60HZ |
| Gross weight | 5600KG | 5600KG |
产品主机
Leading Brand
HY-W-SJS-3S / 3S(Y)
Optional: Independent electric box / integrated electric box
Appearance 1: HY-W-SJS-3S Independent electric box
Appearance 2: HY-W-SJS-3S Integrated electrical box
NO.4

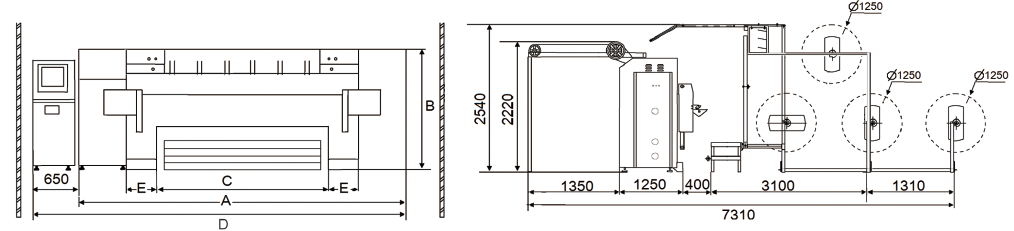

Model | HY-W-SJS-3S | HY-W-SJS-3 | HY-W-SJ | HY-W-BSJ | HY-W-BSJ-3 | HY-W-JH |
A | 4700 | 4700 | 4795 | 4795 | 4700 | 4840 |
B | 2100 | 2100 | 2050 | 2050 | 2100 | 2000 |
C | 2820 | 2820 | 2800 | 2800 | 2870 | 2940 |
D | 5400 | 5400 | 5460 | 5460 | 5400 | 5540 |
E | 670 | 670 | 500 | 500 | 670 | 350 |

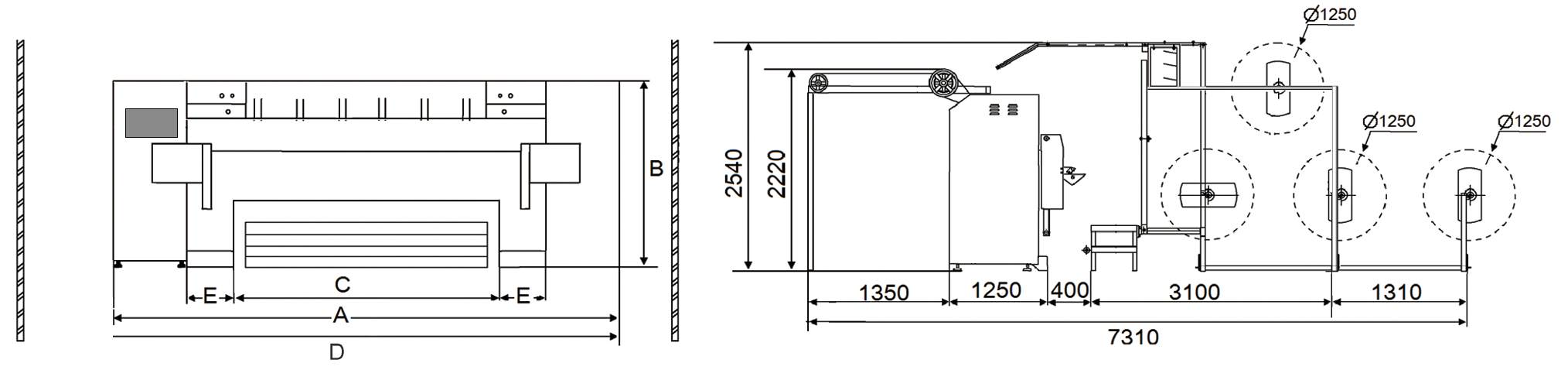

| Model | HY-W-SJS-3S | HY-W-SJS-3 | HY-W-JH |
| A | 4750 | 4750 | 4810 |
| B | 2100 | 2100 | 2000 |
| C | 2820 | 2820 | 2940 |
| E | 670 | 670 | 350 |
机械细节
Details
绗缝效果
Quilted Effect
HY-W-SJS-3S / 3S(Y)
组合方案
Combination scheme

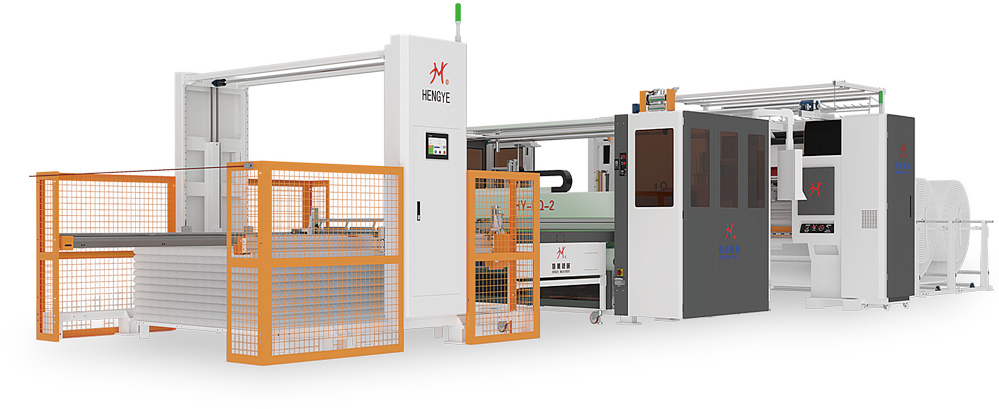

Quilting Machine | Hemming Machine | Cutter Machine | Stacking Machine | Roller Device，We can provide a full perfect combination according to customer’s requirement ！
HY-W-SJS-3S Quilting Machine
HY-FQ-2 Four Side Hemming and Cutting Machine
HY-D-1 Stacking Machine
